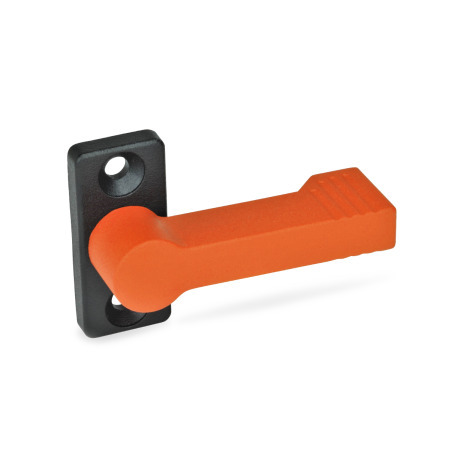

GN 702 Stop Locks with 4 Indexing Positions (4x90°)


GN 702 Stop Locks with 4 Indexing Positions, Zinc Die Casting Type: A - with flange for surface mounting Color: RS - Red, RAL 3000, textured finish
Type: A - with flange for surface mounting
Color: RS - Red, RAL 3000, textured finish
GN 702 Stop Locks with 4 Indexing Positions, Zinc Die Casting Type: A - with flange for surface mounting Color: RS - Red, RAL 3000, textured finish GN 702 Stop Locks with 4 Indexing Positions, Zinc Die Casting Type: A - with flange for surface mounting Color: SW - Black, RAL 9005, textured finish GN 702 Stop Locks with 4 Indexing Positions, Zinc Die Casting Type: B - With internal thread Color: RS - Red, RAL 3000, textured finish GN 702 Stop Locks with 4 Indexing Positions, Zinc Die Casting Type: B - With internal thread Color: SW - Black, RAL 9005, textured finish GN 702 Stop Locks with 4 Indexing Positions, Zinc Die Casting Type: C - With male thread Color: RS - Red, RAL 3000, textured finish GN 702 Stop Locks with 4 Indexing Positions, Zinc Die Casting Type: C - With male thread Color: SW - Black, RAL 9005, textured finish
Standard sheet GN 702 Print this page

Product description

Information

Stop locks GN 702 are particularly suitable for light-weight applications not exposed to dynamic loads, e.g. for keeping drawers closed.

To mount stop locks of Type C, bore holes as shown in the diagram below must be set in the attachment surface.

These mounting holes are usually made by punching or with laser. For small series and steel sheets below 2 mm thickness, the sheet metal punches GN 123 are the tool of choice.

The mounting bore holes can also be made by drilling / milling.

Specification

Latch
Zinc die casting
Powder coated
Black, RAL 9005, textured finishSWSW
Red, RAL 3000, textured finishRSRS

Indexing mechanism

  • Type A
    Zinc die casting / Plastic
  • Type B / Type C
    Steel / Plastic
    Steel parts zinc plated, blue passivated

Fastening flange
Zinc die casting
Powder coated
Black, matte finish

RoHS

Technical drawing

3D
GN 702 Stop Locks with 4 Indexing Positions, Zinc Die Casting sketch
Hide technical drawing
GN 702 Stop Locks with 4 Indexing Positions, Zinc Die Casting sketch

Article options / Table

Type

Awith flange for surface mounting
BWith internal thread
CWith male thread
Show / Hide columns
drbl1 ≈l2l3
min.		l4
1740105,516,521,511
1755105,516,521,511

Build & Price

Open 3D configurator
Handle diameter d
Length r
Type



Color
RS
SW

Selected Part (How to order)

Total (net)
7,69 €
plus VAT 1,46 €
gross 9,15 €
Ask for delivery time
incl. material surcharge: 0,14 €
The material surcharge is already included in the price.
Weight: 0,075 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
84879090
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
All prices in accordance with our price list No. 56, valid from 1 September 2024, plus VAT only valid for Germany.
