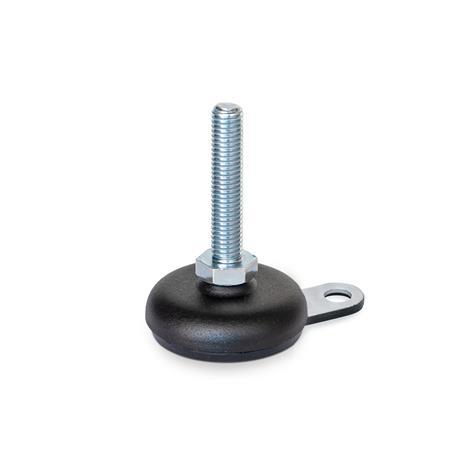

GN 32 Leveling Feet Steel Sheet Metal, with Rubber Pad, with Mounting Flange


GN 32 Leveling Feet, Steel Sheet Metal, with Rubber Pad, with Mounting Flange Type (Base): A5 - Steel, plastic coated black, rubber inlaid, black
Version (Screw): S - Without nut, external hex at the bottom
Type (Base): A5 - Steel, plastic coated black, rubber inlaid, black
Version (Screw): S - Without nut, external hex at the bottom
GN 32 Leveling Feet, Steel Sheet Metal, with Rubber Pad, with Mounting Flange Type (Base): A5 - Steel, plastic coated black, rubber inlaid, black
Version (Screw): S - Without nut, external hex at the bottom GN 32 Leveling Feet, Steel Sheet Metal, with Rubber Pad, with Mounting Flange Type (Base): A1 - Steel, zinc plated, rubber inlaid, black
Version (Screw): SK - With nut, external hex at the bottom GN 32 Leveling Feet, Steel Sheet Metal, with Rubber Pad, with Mounting Flange Type (Base): A1 - Steel, zinc plated, rubber inlaid, black
Version (Screw): UK - With nut, hex socket at the top and wrench flat at the bottom GN 32 Leveling Feet, Steel Sheet Metal, with Rubber Pad, with Mounting Flange Type (Base): A5 - Steel, plastic coated black, rubber inlaid, black
Version (Screw): U - Without nut, hex socket at the top and wrench flat at the bottom GN 32 Leveling Feet, Steel Sheet Metal, with Rubber Pad, with Mounting Flange Type (Base): A5 - Steel, plastic coated black, rubber inlaid, black
Version (Screw): X - External hex with internal thread

Product description

Information

Leveling feet GN 32 will be delivered mounted and are not removable.

Specification

Base plate, steel sheet metal

  • Type A1:
    Steel, zinc plated, blue passivated
  • Type A5:
    Steel, powder coated
    Black, RAL 9005

Flange, sheet metal
Steel, zinc plated, blue passivated


Threaded stem
Steel, zinc plated, blue passivated


Hex nut ISO 4032
Steel, zinc plated, blue passivated


Rubber pad, inlaid

  • Black, NBR (Perbunan®)
    80±5 Shore A

RoHS

Technical drawing

3D
Hide technical drawing
GN 32 Leveling Feet, Steel Sheet Metal, with Rubber Pad, with Mounting Flange sketch

Article options / Table

Type (Base)

A1Steel, zinc plated, rubber inlaid, black
A5Steel, plastic coated black, rubber inlaid, black

Version (Screw)

SWithout nut, external hex at the bottom
SKWith nut, external hex at the bottom
UWithout nut, hex socket at the top and wrench flat at the bottom
UKWith nut, hex socket at the top and wrench flat at the bottom
XExternal hex with internal thread
Show / Hide columns
d1d2l1
Version
S / SK

Version
U / UK
l7
Version
X
h1l8l9
50M 8405063-------40182545
50M 10506080100------43182545
50M 126080100125------47182545
50M 16----7510012515020025052182545
60M 8405063-------41192550
60M 10506080100------44192550
60M 126080100125------48192550
60M 16----7510012515020025053192550
80M 8405063-------42203070
80M 10506080100------45203070
80M 126080100125------49203070
80M 16----7510012515020025054203070
80M 20----7510012515020025062203070
80M 24----100125150200300--203070
100M 8405063-------43213080
100M 10506080100------46213080
100M 126080100125------50213080
100M 16----7510012515020025055213080
100M 20----7510012515020025063213080
100M 24----100125150200300--213080
Show / Hide columns
d1d2h3h4A/F1A/F2A/F3A/F7t
50M 826-17--148
50M 1026-17--1410
50M 1226-17--1712
50M 16-32-1282216
60M 827-17--148
60M 1027-17--1410
60M 1227-17--1712
60M 16-33-1282216
80M 828-17--148
80M 1028-17--1410
80M 1228-17--1712
80M 16-34-1282216
80M 20-35-15102720
80M 24-38-1912--
100M 829-17--148
100M 1029-17--1410
100M 1229-17--1712
100M 16-35-1282216
100M 20-36-15102720
100M 24-39-1912--

Build & Price

Open 3D configurator
Foot diameter d1
Thread d2
Length l1 (S/SK)
Length l1 (U/UK)
Length l7 (X)
Type (Base)


Version (Screw)





Selected Part (How to order)

Total (net)
7,88
plus VAT 1,50 €
gross 9,38 €
In stock
Weight: 0,130 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
73269098
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
All prices in accordance with our price list No. 56, valid from 1 September 2024, plus VAT only valid for Germany.
