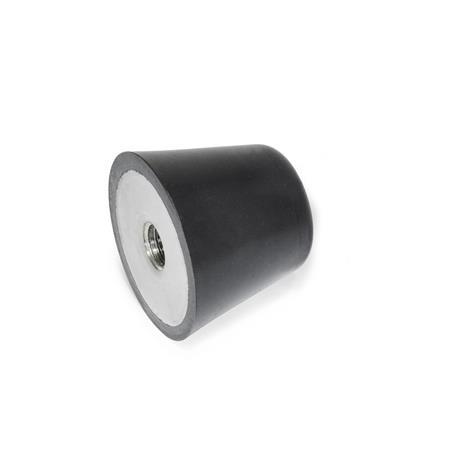

GN 254 Buffers with Internal Thread Blunt Conical Shape, Stainless Steel


GN 254 Buffers with Internal Thread, Stainless Steel
Stainless-Steel

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

  • corrosion-resistant
  • precise fit
  • environmentally friendly
Show all Stainless Steel products
Standard sheet GN 254 Print this page Plastic Characteristics Stainless Steel Characteristics

Product description

Information

Buffers GN 254 are used as end stops or setup elements, e.g. for conveyors.

They absorb vibrations and have a damping effect.

Specification

Rubber Perbunan® (NBR)

  • Black
  • Vulcanized to the cover plate
  • Temperature resistant up to 80 °C
  • Hardness shore A ±5
    Soft40*
    Medium55
    Hard70*

Cover sheet, threaded bushings
Stainless steel AISI 304

RoHS

Technical drawing

3D
GN 254 Buffers with Internal Thread, Stainless Steel sketch
Hide technical drawing
GN 254 Buffers with Internal Thread, Stainless Steel sketch

Article options / Table

Show / Hide columns
d1d2d3hstSpring rate ≈
in N/mm
Hardness 55		max. load
in N
Hardness 55		max.
travel ≈
in mm
19M 5121625281104
25M 616,520,526824305,25
32M 82126281409106,5
38M 824,5322812512009,5
50M 10324328155162010,5
* not available from stock, requires a minimum order quantity

Build & Price

Open 3D configurator
Specifications

Outside diameter d1
Inner diameter d2
Hardness



Selected Part (How to order)

Total (net)
3,23 €
plus VAT 0,61 €
gross 3,84 €
In stock
Weight: 0,006 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
40169991
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
All prices in accordance with our price list No. 56, valid from 1 September 2024, plus VAT only valid for Germany.
