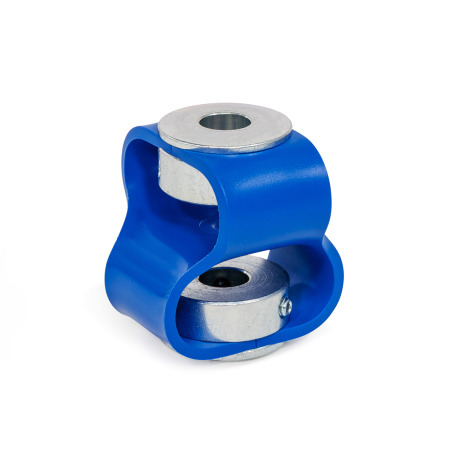

Double Loop Couplings GN 2250

Material: ST - Steel
Material (loop): S - Thermoplastic elastomer (TPE)

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

corrosion-resistant
precise fit
environmentally friendly

Show all Stainless Steel products

FDA compliant

Standard sheet GN 2250 Print this page Couplings - General Notes Couplings - Overview of Types ISO Fundamental Tolerances Plastic Characteristics Stainless Steel Characteristics

Product description

Double loop couplings GN 2250 connect shafts and compensate for axial, radial and angular misalignment. The special design has a shock and vibration damping effect, insulates connected shafts thermally and electrically and ensures very smooth running.

The AISI 316L stainless steel version is particularly suitable for applications in highly corrosive environments and, due to the FDA compliant material of the double loops, also in food areas.

Specification

SteelST

Zinc plated, blue passivated
Loop
Thermoplastic elastomer (TPE)S
- Operating temperature -30 °C to +80 °C
- Blue
- Hardness 55 Shore D
Grub screw DIN 916
Steel, zinc plated

Stainless steelA4 AISI 316L

Plain finish
Loop
Thermoplastic elastomer (TPE),
FDA compliant materialF
- Operating temperature -30 °C to +80 °C
- Blue
- Hardness 50 Shore D
Grub screw DIN 916
Stainless steel

RoHS
