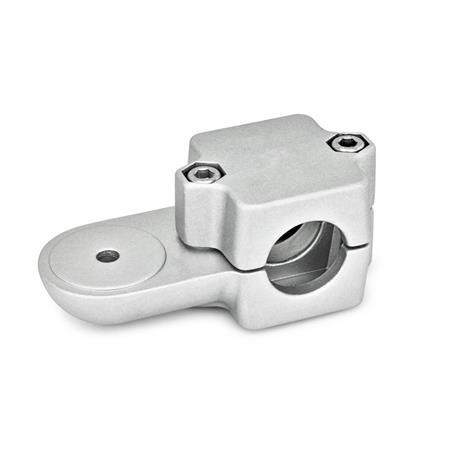

GN 279 Swivel Clamp Connectors Aluminum, Split Assembly


GN 279 Swivel Clamp Connectors, Aluminum, Split Assembly d<sub>1</sub> / s<sub>1</sub>: B - Bore Finish: BL - Plain finish, matte shot-plasted
d1 / s1: B - Bore
Finish: BL - Plain finish, matte shot-plasted
GN 279 Swivel Clamp Connectors, Aluminum, Split Assembly d<sub>1</sub> / s<sub>1</sub>: B - Bore Finish: BL - Plain finish, matte shot-plasted GN 279 Swivel Clamp Connectors, Aluminum, Split Assembly d<sub>1</sub> / s<sub>1</sub>: B - Bore Finish: SW - Black, RAL 9005, textured finish GN 279 Swivel Clamp Connectors, Aluminum, Split Assembly d<sub>1</sub> / s<sub>1</sub>: V - Square Finish: BL - Plain finish, matte shot-plasted GN 279 Swivel Clamp Connectors, Aluminum, Split Assembly d<sub>1</sub> / s<sub>1</sub>: V - Square Finish: SW - Black, RAL 9005, textured finish
Standard sheet GN 279 Print this page Stainless Steel Characteristics

Product description

Information

The clamping bore of swivel clamp connectors GN 279 is not machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.

The versions with square bores are also suitable for use with profile systems.

At the screw locations z, the socket cap screws reduce the cross-section for clamping. For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessory.

Two swivel clamp connectors GN 279 can be combined to swivel clamp connector joints GN 289.

Swivel clamp connectors GN 279 can be combined with swivel clamp connectors GN 272, GN 274 or GN 276 to swivel clamp connector joints.

Specification

Aluminum

  • Powder coated
    Black, RAL 9005, textured finishSWSW
  • Plain finish, matte shot-plastedBLBL

Socket cap screws DIN 912
Stainless steel AISI 304

Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring
