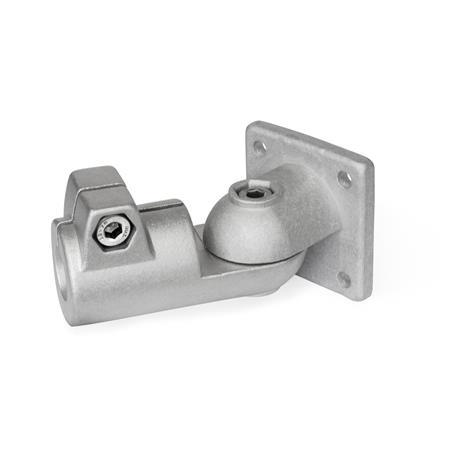

Swivel Clamp Connector Joints GN 282

d₁ Bore	b Swivel width	d₂	k	l₁	l₂	m₁	m₂	t	x₁	x₂	y₁	y₂	z₁ Screw location	z₂ Screw locations	Accessory recom. hand lever GN 911 for z₁ l₃	for z₂ l₃

B 20	40	6,5	42,5	104,5	52	32,5	72	7	60	42	60	42	M8-25	M8-30	-	63 \| 78
B 25	40	6,5	42,5	104,5	52	32,5	72	7	60	42	60	42	M8-25	M8-30	63 \| 78	63 \| 78
B 30	40	6,5	42,5	104,5	52	32,5	72	7	60	42	60	42	M8-25	M8-30	63 \| 78	63 \| 78
B 40	65	11	74	167	77,5	52	115	14	105	74	105	74	M10-50	M10-55	-	78 \| 92
B 42	65	11	74	167	77,5	52	115	14	105	74	105	74	M10-50	M10-55	-	78 \| 92
B 45	65	11	74	167	77,5	52	115	14	105	74	105	74	M10-50	M10-55	78 \| 92	78 \| 92
B 48	65	11	74	167	77,5	52	115	14	105	74	105	74	M10-50	M10-55	78 \| 92	78 \| 92
B 50	65	11	74	167	77,5	52	115	14	105	74	105	74	M10-50	M10-55	78 \| 92	78 \| 92
