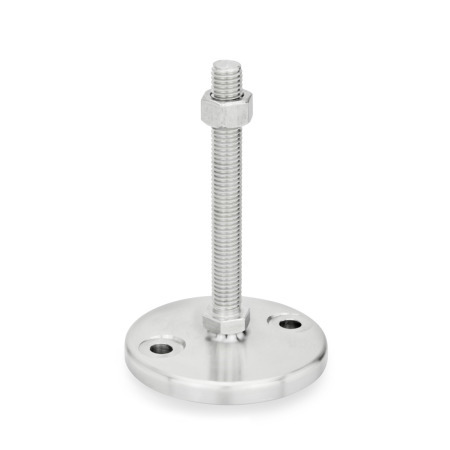

GN 23 Leveling Feet Stainless Steel, with Turned Base Plate, with Mounting Holes

GN 23 Leveling Feet, Stainless Steel Type (Foot plate): D0 - Fine turned, without rubber underlay
Version of the screw: SK - With nut, external hex at the bottom

Type (Foot plate): D0 - Fine turned, without rubber underlay
Version of the screw: SK - With nut, external hex at the bottom

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

corrosion-resistant
precise fit
environmentally friendly

Show all Stainless Steel products

Standard sheet GN 23 Print this page Load rating of Levelling feet GN 21 / GN 23 Plastic Characteristics Stainless Steel Characteristics

Product description

Leveling feet GN 23 will be delivered mounted and are not removable.

Specification

Base plate
Stainless steel AISI 304

Threaded stem
Stainless steel AISI 303

Hexagon nut ISO 4032
Stainless steel AISI 304

Rubber underlay, inlaid
NBR (Perbunan®), 70 Shore A

RoHS

GN 23 Leveling Feet, Stainless Steel sketch

Hide technical drawing

Article options / Table

Type (Foot plate)

D0	Fine turned, without rubber underlay
D1	Fine turned, with rubber underlay, inlaid, black

Version of the screw

S	Without nut, external hex at the bottom
SK	With nut, external hex at the bottom
T	Without nut, wrench flat at the bottom
TK	With nut, wrench flat at the bottom
U	Without nut, hex socket at the top and wrench flat at the bottom
UK	With nut, hex socket at the top and wrench flat at the bottom
V	Without nut, external hex at the top and wrench flat at the bottom
VK	With nut, external hex at the top and wrench flat at the bottom
W	With adjustable sleeve, covered thread and wrench flat at the bottom
X	External hex with internal thread

Show / Hide columns

d₁	d₂	l₁ Version S / SK				Version T / TK and U / UK						l₂ Version V / VK				l₃ ≈ Version W				l₇ Version X	h₁	h₂	k

80	M 8	40	50	63	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	34	8,5	2	54,5
80	M 10	50	60	80	100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	37	8,5	2	54,5
80	M 12	60	80	100	125	-	-	-	-	-	-	-	-	-	-	-	-	-	-	40	8,5	2	54,5
80	M 16	-	-	-	-	75	100	125	150	200	250	75	100	125	150	118	143	168	193	46	8,5	2	54,5
80	M 20	-	-	-	-	75	100	125	150	200	250	100	125	150	200	143	168	193	243	54	8,5	2	54,5
80	M 24	-	-	-	-	100	125	150	200	300	-	100	150	200	-	168	218	268	-	-	8,5	2	54,5
100	M 8	40	50	63	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	35	9	3	70,5
100	M 10	50	60	80	100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	38	9	3	70,5
100	M 12	60	80	100	125	-	-	-	-	-	-	-	-	-	-	-	-	-	-	41	9	3	70,5
100	M 16	-	-	-	-	75	100	125	150	200	250	75	100	125	150	119	144	169	194	47	9	3	70,5
100	M 20	-	-	-	-	75	100	125	150	200	250	100	125	150	200	144	169	194	244	55	9	3	70,5
100	M 24	-	-	-	-	100	125	150	200	300	-	100	150	200	-	169	219	269	-	-	9	3	70,5
120	M 20	-	-	-	-	75	100	125	150	200	250	-	-	-	-	-	-	-	-	59	12	3,5	95,5
120	M 24	-	-	-	-	100	125	150	200	300	-	-	-	-	-	-	-	-	-	-	12	3,5	95,5
120	M 30	-	-	-	-	100	125	150	200	300	-	-	-	-	-	-	-	-	-	-	12	3,5	95,5

Show / Hide columns

d₁	d₂	d₃	h₃	h₄	h₅	l₄	l₅	l₆	A/F1	A/F2	A/F3	A/F4	A/F5	A/F6	A/F7	t

80	M 8	-	19,5	-	-	-	-	-	17	-	-	-	-	-	14	8
80	M 10	-	19,5	-	-	-	-	-	17	-	-	-	-	-	14	10
80	M 12	-	19,5	-	-	-	-	-	17	-	-	-	-	-	17	12
80	M 16	24	-	25,5	21,5	45	45	29	-	12	8	10	12	20	22	16
80	M 20	30	-	27	23	56	56	36	-	15	10	13	16	24	27	20
80	M 24	35	-	30,5	26	67	67	42	-	19	12	17	20	30	-	-
100	M 8	-	20,5	-	-	-	-	-	17	-	-	-	-	-	14	8
100	M 10	-	20,5	-	-	-	-	-	17	-	-	-	-	-	14	10
100	M 12	-	20,5	-	-	-	-	-	17	-	-	-	-	-	17	12
100	M 16	24	-	26,5	22,5	45	45	32	-	12	8	10	12	20	22	16
100	M 20	30	-	28	24	56	56	40	-	15	10	13	16	24	27	20
100	M 24	35	-	31,5	27	67	67	48	-	19	12	17	20	30	-	-
120	M 20	-	-	32	-	-	-	-	-	15	10	-	-	-	27	20
120	M 24	-	-	35,5	-	-	-	-	-	19	12	-	-	-	-	-
120	M 30	-	-	39,5	-	-	-	-	-	24	12	-	-	-	-	-

Show / Hide columns

d₁	d₂	Static load in kN Version S / SK	Version T / TK Version U / UK	Version V / VK	Version W	Version X

80	M 8	6	-	-	-	17
80	M 10	11	-	-	-	17
80	M 12	16	-	-	-	17
80	M 16	-	17	21	25	17
80	M 20	-	28	35	35	28
80	M 24	-	46	52	52	-
100	M 8	6	-	-	-	17
100	M 10	11	-	-	-	17
100	M 12	16	-	-	-	17
100	M 16	-	17	21	25	17
100	M 20	-	28	35	35	28
100	M 24	-	46	52	52	-
120	M 20	-	28	-	-	28
120	M 24	-	46	-	-	-
120	M 30	-	43	-	-	-
