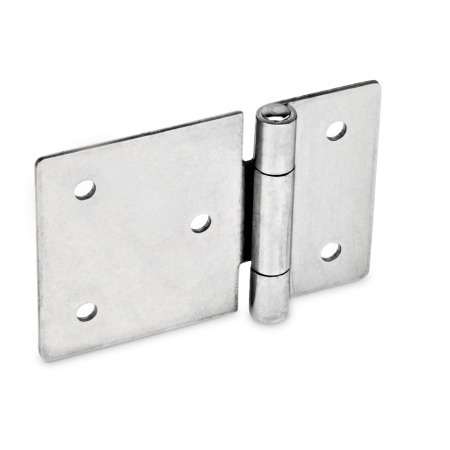

GN 136 Sheet Metal Hinges Stainless Steel, Horizontally Elongated


GN 136 Sheet Metal Hinges, Stainless Steel, Horizontally Elongated Material: A4 - Stainless steel Type: B - With through-holes Width: l1 (e) - on one side elongated
Material: A4 - Stainless steel
Type: B - With through-holes
Width: l1 (e) - on one side elongated
GN 136 Sheet Metal Hinges, Stainless Steel, Horizontally Elongated Material: A4 - Stainless steel Type: B - With through-holes Width: l1 (e) - on one side elongated GN 136 Sheet Metal Hinges, Stainless Steel, Horizontally Elongated Material: A4 - Stainless steel Type: B - With through-holes Width: l1 (b) - on both sides elongated GN 136 Sheet Metal Hinges, Stainless Steel, Horizontally Elongated Material: A4 - Stainless steel Type: C - With countersunk holes Width: l1 (b) - on both sides elongated GN 136 Sheet Metal Hinges, Stainless Steel, Horizontally Elongated Material: A4 - Stainless steel Type: C - With countersunk holes Width: l1 (e) - on one side elongated GN 136 Sheet Metal Hinges, Stainless Steel, Horizontally Elongated Material: NI - Stainless steel Type: A - Without bores Width: l1 (b) - on both sides elongated GN 136 Sheet Metal Hinges, Stainless Steel, Horizontally Elongated Material: NI - Stainless steel Type: A - Without bores Width: l1 (e) - on one side elongated GN 136 Sheet Metal Hinges, Stainless Steel, Horizontally Elongated Material: NI - Stainless steel Type: B - With through-holes Width: l1 (b) - on both sides elongated GN 136 Sheet Metal Hinges, Stainless Steel, Horizontally Elongated Material: NI - Stainless steel Type: B - With through-holes Width: l1 (e) - on one side elongated GN 136 Sheet Metal Hinges, Stainless Steel, Horizontally Elongated Material: NI - Stainless steel Type: C - With countersunk holes Width: l1 (b) - on both sides elongated GN 136 Sheet Metal Hinges, Stainless Steel, Horizontally Elongated Material: NI - Stainless steel Type: C - With countersunk holes Width: l1 (e) - on one side elongated
Stainless-Steel

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

  • corrosion-resistant
  • precise fit
  • environmentally friendly
Show all Stainless Steel products
Standard sheet GN 136 Print this page List of Hinge Types Load rating information of metal hinges Stainless Steel Characteristics

Product description

Information

Sheet metal hinges GN 136 are available in many different versions and are suitable for light to medium-duty applications.

Type A can be fixed in place by welding or by using holes made by the customer.

The stainless steel versions are particularly suited for applications in highly aggressive conditions.

Specification

Hinge leafs

  • Stainless steel AISI 304NI
    All types
  • Stainless steel AISI 316A4
    Only type B and C

Pin
Stainless Steel

  • AISI 304 for NI
  • AISI 316 for A4
  • Riveted

RoHS

Technical drawing

3D
GN 136 Sheet Metal Hinges, Stainless Steel, Horizontally Elongated sketch
Hide technical drawing
GN 136 Sheet Metal Hinges, Stainless Steel, Horizontally Elongated sketch

Article options / Table

Type

AWithout bores
BWith through-holes
CWith countersunk holes
Show / Hide columns
l1
on one side
elongated
on both sides
elongated		l2d1d2d3d4m1m2m4m5s
45-3033,246,433189241,5
-603033,246,448189241,5
60-4044,258,3452512,532,52
-804044,258,3652512,532,52
75-5065,258,3553015402
-1005065,258,3803015402
90-6065,258,3663618482
-1206065,258,3963618482

Build & Price

Open 3D configurator
Specifications



Material


Width l1
Length l2
Type



Selected Part (How to order)

Total (net)
2,64 €
plus VAT 0,50 €
gross 3,14 €
In stock
Weight: 0,019 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
83021000
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
All prices in accordance with our price list No. 56, valid from 1 September 2024, plus VAT only valid for Germany.

CAD data

Other data formats

Quick-Login

For getting CAD data please enter you Email address. But we would be pleased, if you are fully registered.

Please enter the code you can find in the picture.

CAD Download Tutorial About CAD-Downloads
Save as favourite
Recommend a product

Please enter the code you can find in the picture.

Do you find your product ?

Our service team is available from Monday to Friday between 7:00 AM and 5:30 PM: +49 7723 6507 - 0

To the customised elements | To the contact persons

GN 136-NI-45-30-AGN 136-NI-45-30-BGN 136-NI-45-30-CGN 136-A4-45-30-BGN 136-A4-45-30-CGN 136-NI-60-30-AGN 136-NI-60-30-BGN 136-NI-60-30-CGN 136-A4-60-30-BGN 136-A4-60-30-CGN 136-NI-60-40-AGN 136-NI-60-40-BGN 136-NI-60-40-CGN 136-A4-60-40-BGN 136-A4-60-40-CGN 136-NI-80-40-AGN 136-NI-80-40-BGN 136-NI-80-40-CGN 136-A4-80-40-BGN 136-A4-80-40-CGN 136-NI-75-50-AGN 136-NI-75-50-BGN 136-NI-75-50-CGN 136-A4-75-50-BGN 136-A4-75-50-CGN 136-NI-100-50-AGN 136-NI-100-50-BGN 136-NI-100-50-CGN 136-A4-100-50-BGN 136-A4-100-50-CGN 136-NI-90-60-AGN 136-NI-90-60-BGN 136-NI-90-60-CGN 136-A4-90-60-BGN 136-A4-90-60-CGN 136-NI-120-60-AGN 136-NI-120-60-BGN 136-NI-120-60-CGN 136-A4-120-60-BGN 136-A4-120-60-C
