You are here: Product Overview  >  3.7 Connecting, Assembling with Clamping and Connecting Elements  >  Connector Clamps  >  GN 191 T-Angle Connector Clamps previous product next product

GN 191 T-Angle Connector Clamps Aluminum

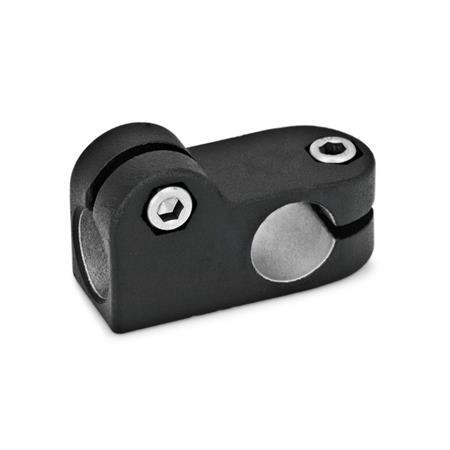

GN 191 T-Angle Connector Clamps, Aluminum Finish: SW - Black, RAL 9005, textured finish
Finish: SW - Black, RAL 9005, textured finish
GN 191 T-Angle Connector Clamps, Aluminum Finish: SW - Black, RAL 9005, textured finish GN 191 T-Angle Connector Clamps, Aluminum Finish: BL - Plain finish, matte shot-plasted
Standard sheet GN 191 Print this page Stainless Steel Characteristics

Product description

Information

The clamping bores of T-angle connector clamps GN 191 are mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.

At the screw locations z1 / z2, the socket cap screws reduce the bore cross-section for clamping.

For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.

Specification

Aluminum

  • Powder coated
    Black, RAL 9005, textured finishSWSW
  • Plain finish, matte shot-plastedBLBL

Socket cap screws DIN 912
Stainless steel AISI 304

Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring

RoHS

Accessory

Adjustable Hand Levers GN 911

On request

d1/d2 with unequal bores
With inch bores

Technical drawing

3D
GN 191 T-Angle Connector Clamps, Aluminum sketch
Hide technical drawing
GN 191 T-Angle Connector Clamps, Aluminum sketch

Article options / Table

Identification no.

2With 2 stainless steel socket cap screws DIN 912
Show / Hide columns
d1
Bore		d2
Bore		k
Clamping
length		l1l2mz1
Screw
location		z2
Screw
location		Accessory
Recom. hand lever
GN 911 for z1
l3

for z2
l3
B 10B 10256134,539M6-20M6-20-63
B 12B 12256134,539M6-20M6-20-45 | 63
B 14B 14256134,539M6-20M6-20-45 | 63
B 15B 15256134,539M6-20M6-20-45 | 63
B 16B 16256134,539M6-20M6-20-45 | 63
B 18B 18256134,539M6-20M6-20-45 | 63

Build & Price

Open 3D configurator
Specifications

Bore d1
Bore d2
Identification no.

Finish
BL
SW

Selected Part (How to order)

Total (net)
13,34 €
plus VAT 2,53 €
gross 15,87 €
In stock
incl. material surcharge: 0,20 €
The material surcharge is already included in the price.
Weight: 0,097 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
76090000
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
All prices in accordance with our price list No. 56, valid from 1 September 2024, plus VAT only valid for Germany.
