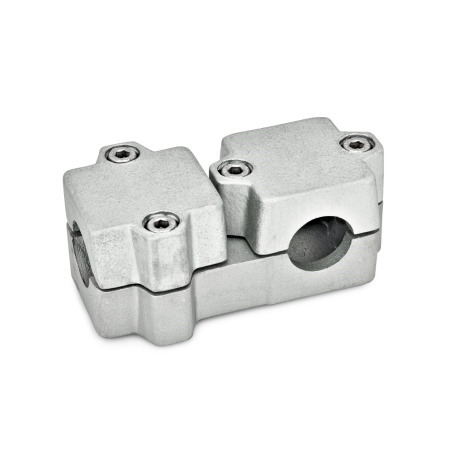

GN 194 T-Angle Connector Clamps Aluminum, Multi Part Assembly


GN 194 T-Angle Connector Clamps, Aluminum d<sub>1</sub> / s<sub>1</sub>: B - Bore d<sub>2</sub> / s<sub>2</sub>: B - Bore Finish: BL - Plain finish, matte shot-plasted
d1 / s1: B - Bore
d2 / s2: B - Bore
Finish: BL - Plain finish, matte shot-plasted
GN 194 T-Angle Connector Clamps, Aluminum d<sub>1</sub> / s<sub>1</sub>: B - Bore d<sub>2</sub> / s<sub>2</sub>: B - Bore Finish: BL - Plain finish, matte shot-plasted GN 194 T-Angle Connector Clamps, Aluminum d<sub>1</sub> / s<sub>1</sub>: B - Bore d<sub>2</sub> / s<sub>2</sub>: B - Bore Finish: SW - Black, RAL 9005, textured finish GN 194 T-Angle Connector Clamps, Aluminum d<sub>1</sub> / s<sub>1</sub>: B - Bore d<sub>2</sub> / s<sub>2</sub>: V - Square Finish: BL - Plain finish, matte shot-plasted GN 194 T-Angle Connector Clamps, Aluminum d<sub>1</sub> / s<sub>1</sub>: B - Bore d<sub>2</sub> / s<sub>2</sub>: V - Square Finish: SW - Black, RAL 9005, textured finish GN 194 T-Angle Connector Clamps, Aluminum d<sub>1</sub> / s<sub>1</sub>: V - Square d<sub>2</sub> / s<sub>2</sub>: B - Bore Finish: BL - Plain finish, matte shot-plasted GN 194 T-Angle Connector Clamps, Aluminum d<sub>1</sub> / s<sub>1</sub>: V - Square d<sub>2</sub> / s<sub>2</sub>: B - Bore Finish: SW - Black, RAL 9005, textured finish GN 194 T-Angle Connector Clamps, Aluminum d<sub>1</sub> / s<sub>1</sub>: V - Square d<sub>2</sub> / s<sub>2</sub>: V - Square Finish: BL - Plain finish, matte shot-plasted GN 194 T-Angle Connector Clamps, Aluminum d<sub>1</sub> / s<sub>1</sub>: V - Square d<sub>2</sub> / s<sub>2</sub>: V - Square Finish: SW - Black, RAL 9005, textured finish
Standard sheet GN 194 Print this page Product Family Standard Parts for Profile Systems Stainless Steel Characteristics

Product description

Information

The clamping bores of T-angle connector clamps GN 194 are not machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.

The versions with square bores are also suitable foruse with profile systems.

At the screw locations z, the socket cap screws reduce the bore cross-section for clamping.

For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.

Specification

Aluminum

  • Powder coated
    Black, RAL 9005, textured finishSWSW
  • Plain finish, matte shot-plastedBLBL

Socket cap screws DIN 912
Stainless steel AISI 304

Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring

RoHS

Accessory

Adjustable Hand Levers GN 911

Technical drawing

3D
GN 194 T-Angle Connector Clamps, Aluminum sketch
Hide technical drawing
GN 194 T-Angle Connector Clamps, Aluminum sketch

Article options / Table

Identification no.

2With 4 stainless steel socket cap screws DIN 912
Show / Hide columns
d1
Bore		s1
Square		d2
Bore		s2
Square		k
Clamping
length		l1l2l3mz
Screw
locations		Accessory
recom. hand lever
GN 911 for z
l4
B 20V 20B 20V 2050120684686M8-3563 | 78
B 25V 25B 25V 2550120684686M8-3563 | 78
B 30V 30B 30V 3050120684686M8-3563 | 78
B 30V 30B 30V 30601417959101,5M8-5063 | 78
B 32-B 32-601417959101,5M8-5063 | 78
B 35V 35B 35V 35601417959101,5M8-5063 | 78
B 40V 40B 40V 40601417959101,5M8-5063 | 78
B 40V 40B 40V 40761769870127M10-6078 | 92
B 42-B 42-761769870127M10-6078 | 92
B 45V 45B 45V 45761769870127M10-6078 | 92
B 48-B 48-761769870127M10-6078 | 92
B 50V 50B 50V 50761769870127M10-6078 | 92
