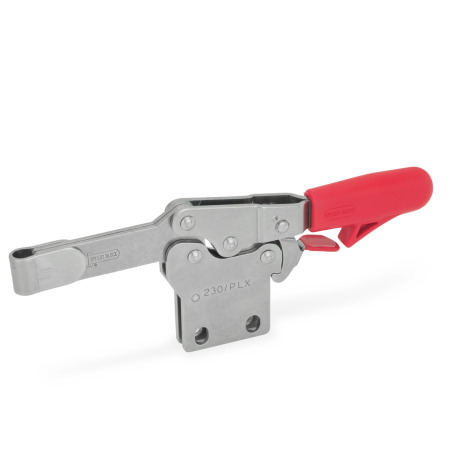

GN 820.4Toggle ClampsStainless Steel, Operating Lever Horizontal, with Lock Mechanism, with Vertical Mounting Base
Material: NI - Stainless steel Type: PL - Solid clamping arm, with clasp for welding
Click on a variant image to view it in the main product display area or use tab keys to navigate through product variants
Product Family Stainless Steel
Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.
Toggle clamps GN 820.4 have a safety function whereby, during closing, a spring loaded safety hook latch ensures a secure locking connection. It prevents the inadvertent unlocking of the clamp due to vibrations or an accidental attempt of loosening / opening of the clamp. To open and release the clamp, pull up on the finger grip to disengage the safety hook latch mechanism (one hand operation).
They work according to the toggle principle: lever and clamping bar move in the opposite direction. They require less space for the clamping action.
Toggle clamps in the U-bar version with two flanged washers (type NL) can accommodate an application specific clamping screw. A clamping screw with neoprene rubber tip is also included for type NLC.
Toggle clamps in the type PL version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component.
Specification
Stainless steelNI AISI 304
All moving parts
Lubricated with special grease
Solid designed plastic handle
Red, oil resistant
Clamping screw GN 708.1, type A
Stainless steel AISI 304
Rubber thrust pad 85 Shore A
RoHS
Hide technical drawing
Article options / Table
Type
NL
Forked clamping arm, with two flanged washers
NLC
Forked clamping arm, with two flanged washers and clamping screw GN 708.1
The material surcharge is already included in the price.
Weight: 0,090 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed. If you do need weight details, please contact our Sales Department! Phone+49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
