You are here: Product Overview > 1.3 Adjusting with Handwheels and Cranks > Sheet Metal Handwheels > GN 228 Handwheels next product

GN 228 Handwheels Steel Sheet Metal


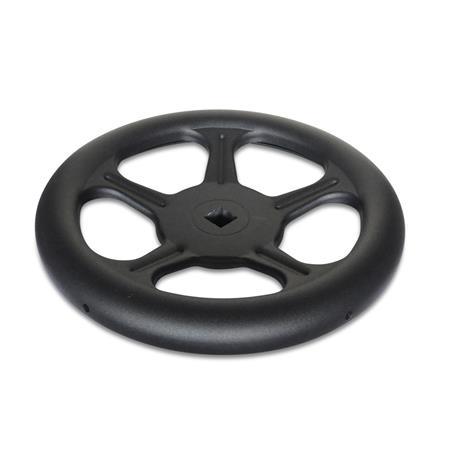

GN 228 Handwheels, Steel Sheet Metal Material: ST - Steel
Bore code: V - With square
Type: A - Without handle

Material: ST - Steel
Bore code: V - With square
Type: A - Without handle

GN 228 Handwheels, Steel Sheet Metal Material: ST - Steel
Bore code: V - With square
Type: A - Without handle

GN 228 Handwheels, Steel Sheet Metal Material: ST - Steel
Bore code: B - Without keyway
Type: A - Without handle

GN 228 Handwheels, Steel Sheet Metal Material: ST - Steel
Bore code: K - With keyway DIN 6885-1 P9
Type: A - Without handle

Standard sheet GN 228 Print this page Cross holes GN 110 Keyways P9 DIN 6885-1 ISO Fundamental Tolerances Squares DIN 79

Product description

Information

Handwheels GN 228 of sheet steel are robust and unaffected by shocks and knocks. The hub lengths l₁ and the diameter d₃ correspond to DIN 950.

Specification

SteelST

Powder coated
Black, RAL 9005, textured finishSW
Wheel body of steel sheet metal
Hub welded

RoHS

Technical drawing

GN 228 Handwheels, Steel Sheet Metal sketch

Hide technical drawing

GN 228 Handwheels, Steel Sheet Metal sketch

Article options / Table

Bore code

B	Without keyway
K	With keyway DIN 6885-1 P9
V	With square

Type

A	Without handle

Show / Hide columns

d₁	d₂ H9 Bore	s H11 Square	b	d₃	l₁	l₂ ≈	No. of spokes	Thickness of sheet metal

125	11	V 11	18	30	18	29	3	1,5
160	12	V 12	22	30	20	37	4	1,5
200	14	V 14	22	40	24	46	4	2
250	17	V 17	30	45	28	52	5	2,5
315	19	V 19	35	55	33	64	5	2,5
400	24	V 24	40	65	38	82	5	3

Build & Price

Open 3D configurator

GN 110 Cross holes (special order)

f8ca6d28-dd73-48fa-98c4-bb48305c7686

Show / Hide columns

d₁ H7 s H11	d₁ H7 s H11	d₂ H11	d₃	Length l Standard version	Length l Handwheels DIN 950 / GN 949 to Ø 250

6	7	2,5	M 3	4,5	-
8	9	3	M 5	5,5	4,5
10	11	3	M 5	5,5	4,5
12	13	4	M 6	6,5	5,5
14	15	4	M 6	6,5	5,5
16	17	5	M 6	8	7
18	19	5	M 6	8	7
20	21	5	M 6	8	7
22	23	6	M 6	10	9
24	25	6	M 6	10	9
26	27	6	M 6	10	9

The connection between the operating element and the shaft consists very often of a cross pin or a grub screw.
As a result the user is faced with relatively high costs since cross holes on operating elements are in general not readily available.
Components with cross holes to GN 110 are not only offered at very competitive prices but they also save the manufacturer unnecessary drawing work. The geometrical form of some of the operating elements, however, does not lend itself to modification to this particular standard.
The pin hole d₂ H11 is drilled to suit drive spring pins.

The cross hole GN 110 is to be ordered as a separate item in shopping cart step 1 under note.
How to order: Handwheel DIN 950-GG-160-B14-A with cross hole GN 110-QE

6df6d732-25ae-4db8-8ad2-f11ca730e67b

Selected Part (How to order)

Part number

Total (net)

9,95 €

plus VAT 1,89 €
gross 11,84 €

In stock

Weight: 0,287 kg

If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0

RoHS: Yes

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).

Customs tariff number

84819000

Please note our order discounts.

With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €

Quantity

All prices in accordance with our price list No. 56, valid from 1 September 2024, plus VAT only valid for Germany.
