GN 810.12 Knee Lever Modules Steel, to Screw-On

GN 810.12 Knee Lever Modules, Steel, to Screw-On Type: G - Mounting holes parallel to the handle pivot point

Type: G - Mounting holes parallel to the handle pivot point

Standard sheet GN 810.12 Print this page General Information for Toggle Clamps Accessories for Knee lever modules

Product description

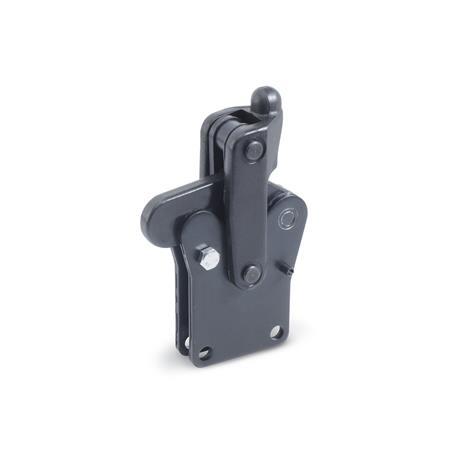

Knee lever modules GN 810.12 have the same properties and attributes as the „Longlife“ GN 810.10 / GN 810.11 heavy duty vertical acting toggle clamps: The clamping arms are die-forged, the remaining steel sheet parts have been reinforced, and bearing pins and rivets are hardened and ground.

These heavy duty knee lever modules are therefore suitable for applications in which substantial forces occur and in which a long service life is required.

Extensive tests have shown that trouble-free function (under load) is ensured also after one million clamping cycles.

These heavy duty knee lever modules permit the size and position of the lever and clamping arms to be adjusted to match the specific application.

Specification

Lever arm Steel
- Forged
- Blackened

Parts in sheet metal
- Case-hardened Steel C10
- Blackened

Bearing pins and rivets
Steel, hardened and ground

All moving parts
Lubricated with special grease

RoHS

GN 810.12 Knee Lever Modules, Steel, to Screw-On sketch

Hide technical drawing

GN 810.12 Knee Lever Modules, Steel, to Screw-On sketch

Article options / Table

Type

C	Mounting holes vertical to the handle pivot point
G	Mounting holes parallel to the handle pivot point

Show / Hide columns

Size	F_H in N Holding capacity	b₁	b₂	b₃	b₄	d	h₁	h₂	h₃	h₄	h₅

220	2200	36	48	13	6	6,5	74	89	30	45,5	17,5
440	4400	54	65	20	10	8,5	121	140,5	50	69,5	28
850	8500	75	75	24	12	10,5	158	180	67	88	35
1540	15400	90	100	34	16	12,5	193	222	76,5	106	40

Show / Hide columns

Size	l₁	l₂	l₃	m₁	m₂	m₃	m₄	r	s₁	s₂

220	57,5	24	29	20	32	8	8	50	3,5	6
440	85,5	32	42,5	30	45	12	10	73	5	10
850	115	38	52	55	55	10	10	99	6	12
1540	147,5	53	68	65	75	12,5	17,5	127,5	8	16

Build & Price

Size

220

440

850

1540

Type

C - Mounting holes vertical to the handle pivot point

G - Mounting holes parallel to the handle pivot point

Accessory for knee lever modules

Drawing Accessory for knee lever modules

Handles

Drawing GN 910.5

Show / Hide columns

Module Size	b₁	d₁	b₂	d₂	b₃	h	t	Code no.

220	22	-	13	-	5	60	55	GN 810.15-220
440	31	-	20	-	8	86	77	GN 810.15-440
850	-	30	-	22	-	119	112	GN 810.15-850
1540	-	34	-	25	-	119	112	GN 810.15-1540

Levers

Drawing GN 910.6

Show / Hide columns

Module Size	b	d	Length l	s	Code no.

220	13	-	60	5	GN 810.16-220
440	20	-	90	8	GN 810.16-440
850	-	22	122	-	GN 810.16-850
1540	-	25	138	-	GN 810.16-1540

Clamping arm extenders

Drawing GN 910.7

Show / Hide columns

Module Size	b₁	b₂	h	Length l	t	Code no.

220	10	6	16	15,5	6,5	GN 810.17-220
440	15	10	24	16	8	GN 810.17-440
850	20	12	30	22,1	15	GN 810.17-850
1540	25	16,2	35	23,5	15	GN 810.17-1540

Bushings

Drawing GN 910.8

Show / Hide columns

Module Size	d₁	d₂	Length l	Code no.

220	13	6,5	16	GN 810.18-220
440	20	10,5	24	GN 810.18-440
850	24	12,5	30	GN 810.18-850
1540	32	16,5	35	GN 810.18-1540

Base plates

Drawing GN 910.9

Show / Hide columns

Module Size	d	l₁	l₂	m₁	m₂	s	Code no.

220	6,5	48	36	32	20	6	GN 810.19-220
440	8,5	65	54	45	30	8	GN 810.19-440
850	10,5	75	75	55	55	10	GN 810.19-850
1540	12,5	100	90	65	65	10	GN 810.19-1540

Selected Part (How to order)

Part number

Total (net)

88,78 €

plus VAT 16,87 €
gross 105,65 €

In stock

Weight: 0,256 kg

If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0

RoHS: Yes

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
