GN 822.8 Mini Indexing Plungers with and without Rest Position

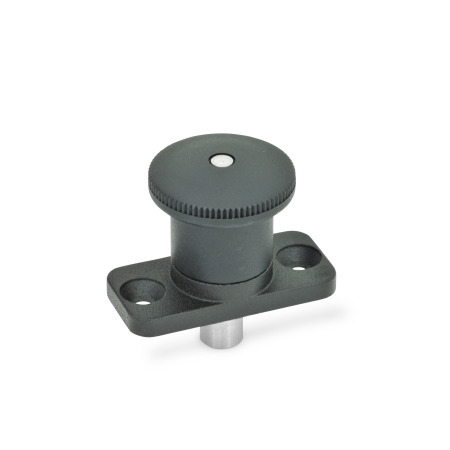

GN 822.8 Mini Indexing Plungers Zinc die casting / Plastic Knob Type: B - Without rest position
Type: B - Without rest position
GN 822.8 Mini Indexing Plungers Zinc die casting / Plastic Knob Type: B - Without rest position GN 822.8 Mini Indexing Plungers Zinc die casting / Plastic Knob Type: C - With rest position
Standard sheet GN 822.8 Print this page List of Indexing Plunger Types Load Rating Information ISO Fundamental Tolerances Stainless Steel Characteristics Plastic Characteristics

Product description

Information

Mini indexing plungers GN 822.8 are distinguished for their small dimensions. They are mounted by countersunk screws.

The mini indexing plungers present an affordable alternative to the GN 608 and GN 608.1 indexing plungers.

In type C, the button can be turned by 30° after retracting the indexing pin, holding it in the “retraced” position using the indexing lock.

Specification

Socket
Zinc die casting
Powder coated
Black, textured finish

Plunger pin
Stainless steel AISI 303

Pressure spring
Stainless steel AISI 301

Knob
Plastic (Polyamide PA)

  • Black, matte
  • Not removable

RoHS

On request

With red knob

Technical drawing

3D
GN 822.8 Mini Indexing Plungers Zinc die casting / Plastic Knob sketch
Hide technical drawing
GN 822.8 Mini Indexing Plungers Zinc die casting / Plastic Knob sketch

Article options / Table

Type

BWithout rest position
CWith rest position
Show / Hide columns
d1
Pin h9
Bore +0,03/+0,08		l1b1b2d2 -0,15d3d4kl2l3l4l5
Stroke		Spring load in N ≈
initial
end
451035158214,32520,5245412
5612401810254,33025,52,546616
6612401810254,33025,52,546616
81020502314335,338352,55101135
101020502314335,338352,55101135

Build & Price

Open 3D configurator
Bolt diameter d1
Length l1
Type


Selected Part (How to order)

Total (net)
4,50 €
plus VAT 0,86 €
gross 5,36 €
In stock
incl. material surcharge: 0,03 €
The material surcharge is already included in the price.
Weight: 0,023 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
73181900
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
All prices in accordance with our price list No. 56, valid from 1 September 2024, plus VAT only valid for Germany.

CAD data

Other data formats

Quick-Login

For getting CAD data please enter you Email address. But we would be pleased, if you are fully registered.

Please enter the code you can find in the picture.

CAD Download Tutorial About CAD-Downloads
Save as favourite
Recommend a product

Please enter the code you can find in the picture.

Do you find your product ?

Our service team is available from Monday to Friday between 7:00 AM and 5:30 PM: +49 7723 6507 - 0

To the customised elements | To the contact persons
