GN 115.9 Latches with Safety Function Operation with Socket Key

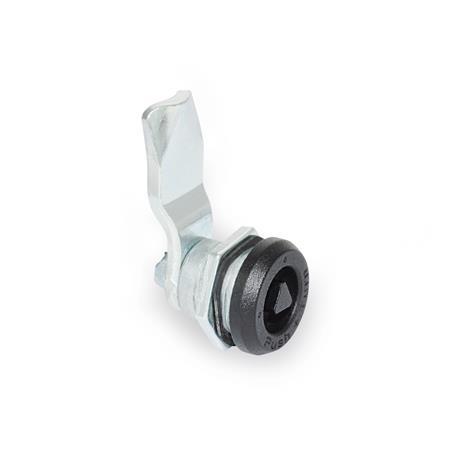

GN 115.9 Latches with Safety Function, Operation with Socket Key Type: DK - With triangular spindle
Type: DK - With triangular spindle
GN 115.9 Latches with Safety Function, Operation with Socket Key Type: DK - With triangular spindle GN 115.9 Latches with Safety Function, Operation with Socket Key Type: VK7 - With square spindle GN 115.9 Latches with Safety Function, Operation with Socket Key Type: VK8 - With square spindle
Standard sheet GN 115.9 Print this page Construction and assembly instructions List of latch types

Product description

Information

Latches GN 115.9 have a push-to-turn safety function. In the two end positions the spindle is locked in place by the latch arm. The device can be turned 90° only when the operating element is pressed down with the socket key, which releases the safety pin from the locked position. This feature protects the latch reliably from moving on its own or as the result of vibrations.

The bevels of the latch arm ease the closing of the door. Latch arms are available with different bend angles to cover a latch arm distance A from 4 to 32 mm.

Latches GN 115.9 are supplied with loosely enclosed latch arm.

Specification

Lock housing
Zinc die casting

Housing collar
Powder coated
Black, textured finishSWSW

Other parts
Steel
Zinc plated, blue passivated

RoHS

Accessory

Socket Keys GN 119.2
Protective Caps GN 120
Opening Handles GN 120.1
Protective Guide Plates GN 120.2

Technical drawing

3D
GN 115.9 Latches with Safety Function, Operation with Socket Key sketch
Hide technical drawing
GN 115.9 Latches with Safety Function, Operation with Socket Key sketch

Article options / Table

Type

DKWith triangular spindle
VK7With square spindle
VK8With square spindle
Show / Hide columns
Latch distance A
468101314161820222426283032

Build & Price

Open 3D configurator
Specifications

Type



Latch distance A
Finish locating ring
SW

Construction and assembly instructions

89a543b8-3a6c-4763-b34f-c6c883af4562

For installation, set a hole in the door, cover or hatch as shown in the outline drawing.

Once assembled, the latch is pushed through the bore diameter from the front. The hex nut can then be pushed over the latch from the back and bolted in place.

The required installation bore in the door leaf, is usually generated by punching or laser machining in series production.

The installation bore diameter can also be created by drilling or milling as shown in the outline drawings.

For small series and steel sheets below 2 mm thickness, the Sheet Metal Punches GN 123 are the tool of choice.

Selected Part (How to order)

Total (net)
8,11 €
plus VAT 1,54 €
gross 9,65 €
In stock
incl. material surcharge: 0,06 €
The material surcharge is already included in the price.
Weight: 0,088 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
83016000
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
All prices in accordance with our price list No. 56, valid from 1 September 2024, plus VAT only valid for Germany.
