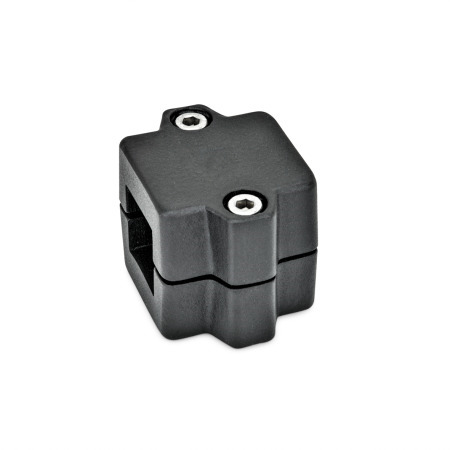

GN 241 Tube Connectors Aluminum, Split Assembly

d₁ / s: V - Square
Finish: SW - Black, RAL 9005, textured finish

Product description

The clamping bore of tube connectors GN 241 is not machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.

The versions with square bores are also suitable for use with profile systems.

At the screw locations z the socket cap screws reduce the bore cross-section for clamping.

For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.

Connector
Aluminum
Powder coated
Black, RAL 9005, textured finishSW
Plain finish, matte shot-plastedBL

Socket cap screws ISO 4762
Stainless steel

Hex nuts DIN 985
Stainless steel
Self-locking via polyamide ring

RoHS

Hide technical drawing

2	With 2 stainless steel socket cap screws ISO 4762

d Bore	s Square	k Clamping length	l₁	l₂	l₃	z Screw locations	Accessory Recom. hand lever GN 911 for z l₄

B 20	V 20	50	68	46	48	M8-35	63 \| 78
B 25	V 25	50	68	46	48	M8-35	63 \| 78
B 30	V 30	50	68	46	48	M8-35	63 \| 78
B 30	V 30	60	79	59	58	M8-50	63 \| 78
B 32	-	60	79	59	58	M8-50	63 \| 78
B 35	V 35	60	79	59	58	M8-50	63 \| 78
B 40	V 40	60	79	59	58	M8-50	63 \| 78
B 40	V 40	76	98	70	73	M10-60	78 \| 92
B 42	-	76	98	70	73	M10-60	78 \| 92
B 45	V 45	76	98	70	73	M10-60	78 \| 92
B 48	-	76	98	70	73	M10-60	78 \| 92
B 50	V 50	76	98	70	73	M10-60	78 \| 92
B 60	V 60	90	108,5	84	83	M10-75	-
