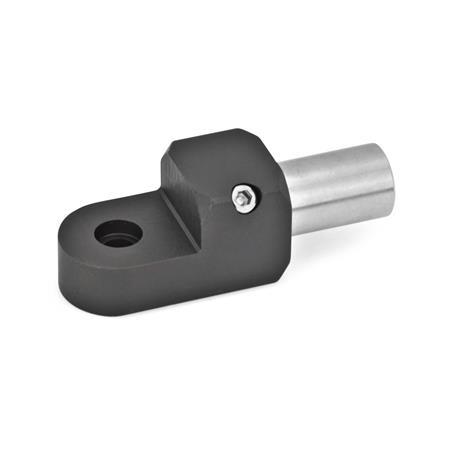

GN 483 T-Swivel Mounting Clamps Aluminium

Finish: ELS - Anodized, black
Type: W - with Bolt

Standard sheet GN 483 Print this page Range Application examples clamp mountings Stainless Steel Characteristics

Product description

T-swivel mounting clamps GN 483 can be combined with swivel mounting clamps GN 482, attachment swivel mounting clamps GN 484 as well as base plate swivel mounting clamps GN 485 with the same k dimensions to clamp connector joints. Clamping kits GN 511.1 with screw (type S) and with adjustable hand lever (type K) are available for this purpose. The article code for ordering is shown in the dimensional table.

Specification

Aluminum
- Matte finish, tumbledMT
- Anodized, blackELS

Bolt (Type W)
Steel, zinc plated, blue chromated finish

Grub screw DIN 913 (Type A)
Stainless steel AISI 304

Grub screw DIN 915 (Type W)
Stainless steel AISI 304

RoHS

GN 483 T-Swivel Mounting Clamps, Aluminium sketch

Hide technical drawing

Article options / Table

Type

A	with Bore
W	with Bolt

Show / Hide columns

d₁ Type A	d₂ Type W	k	d₃	d₄ Swivel bore	d₅	l₁	l₂	l₃	l₄	l₅	l₆	t	Clamping kit for d₄ Type S	Clamping kit for d₄ Type S

B 8	8	16	7	4,5	M 4	30	22	13	8	5,5	16	8	GN 511.1-M4-16-S	GN 511.1-M4-16-S
B 10	10	20	8,5	5,5	M 5	38	28	17	10	7	17	10	GN 511.1-M5-20-S	GN 511.1-M5-20-S
B 12	12	20	8,5	5,5	M 5	38	28	17	10	8	19	12	GN 511.1-M5-20-S	GN 511.1-M5-20-S
B 15	15	25	10	6,5	M 6	46	33,5	20	12,5	10	21	15	GN 511.1-M6-25-S	GN 511.1-M6-25-S
B 16	16	25	10	6,5	M 6	46	33,5	20	12,5	11	24	16	GN 511.1-M6-25-S	GN 511.1-M6-25-S
B 20	20	30	10	6,5	M 6	55	40	24	15	12	26	18	GN 511.1-M6-30-S	GN 511.1-M6-30-S
