GN 511.1 Clamping Kits for Swivel Mounting Clamps

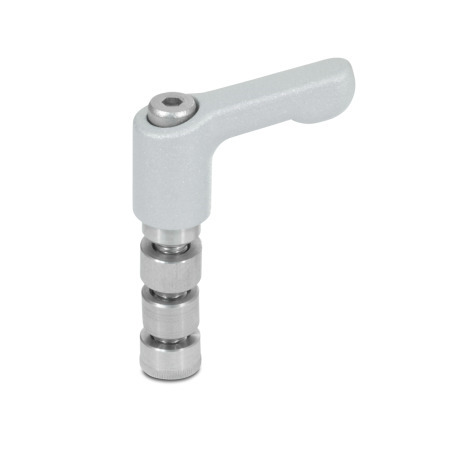

GN 511.1 Clamping Kits, for Swivel Mounting Clamps Type: K - With adjustable hand lever
Type: K - With adjustable hand lever
GN 511.1 Clamping Kits, for Swivel Mounting Clamps Type: K - With adjustable hand lever GN 511.1 Clamping Kits, for Swivel Mounting Clamps Type: S - With socket cap screw DIN 912
Standard sheet GN 511.1 Print this page Operating instruction GN 511.1 Range Application examples clamp mountings Stainless Steel Characteristics

Product description

Information

With clamping kits GN 511.1 swivel mounting clamps GN 482, T-swivel mounting clamps GN 483 as well as attachment swivel mountings clamps GN 484 with the same k dimensions can be combined to mounting clamp joints.

The centering bushing positions and supports the swivel mounting clamps in relation to each other. During assembly, the knurled threaded bushing is inserted by the clamping screw itself and by pressing into one of the two swivel mounting clamps and is then used to clamp the articulated joint.

The appropriate clamping kits are indicated in the dimensional tables of the various swivel mounting clamps.

Specification

  • Handle
    Zinc die casting
    Powder coated
    Silver, RAL 9006, textured finish
  • Threaded insert,
    distance sleeve,
    centering bushing,
    threaded bushing
    Stainless steel AISI 303
  • Socket cap screws DIN 912
    Stainless steel AISI 304

RoHS

Technical drawing

3D
GN 511.1 Clamping Kits, for Swivel Mounting Clamps sketch
Hide technical drawing
GN 511.1 Clamping Kits, for Swivel Mounting Clamps sketch

Article options / Table

Type

SWith socket cap screw DIN 912
KWith adjustable hand lever
Show / Hide columns
d1l2d2d3d4l1l3l4l5l6h1h2Swivel mounting clamp
k-dimension
M 4167,56,97,52211,54,54418,52316
M 52098,49301465524,530,520
M 62510,59,910,54518,56,57624,53525
M 63010,59,910,54523,56,57624,53530

Build & Price

Open 3D configurator
Thread d1
Length l2
Type


Selected Part (How to order)

Total (net)
7,01 €
plus VAT 1,33 €
gross 8,34 €
In stock
Weight: 0,033 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
73182900
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
All prices in accordance with our price list No. 56, valid from 1 September 2024, plus VAT only valid for Germany.

CAD data

Other data formats

Quick-Login

For getting CAD data please enter you Email address. But we would be pleased, if you are fully registered.

Please enter the code you can find in the picture.

CAD Download Tutorial About CAD-Downloads
Save as favourite
Recommend a product

Please enter the code you can find in the picture.

Do you find your product ?

Our service team is available from Monday to Friday between 7:00 AM and 5:30 PM: +49 7723 6507 - 0

To the customised elements | To the contact persons

GN 511.1-M4-16-SGN 511.1-M4-16-KGN 511.1-M5-20-SGN 511.1-M5-20-KGN 511.1-M6-25-SGN 511.1-M6-25-KGN 511.1-M6-30-SGN 511.1-M6-30-K
