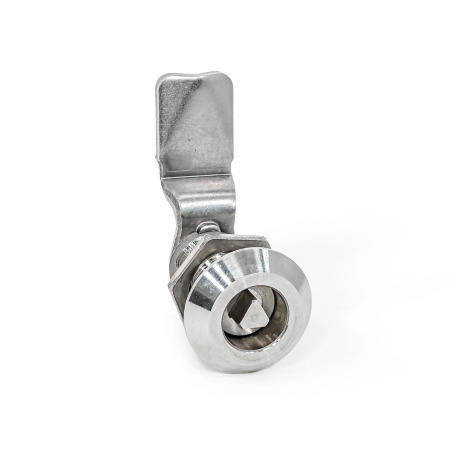

GN 515 Latches Stainless Steel, with Extended Housing, Operation with Socket Keys

Information

Latches GN 515 are identical to standard latches GN 115 except for the extended housing. They are operated with a rotation limited to 90°, which moves the latch arm into the locked position behind the frame. The bevels of the latch arm ease the closing of the door.

Thanks to the stainless steel material, the latches are optimally suited for use in corrosive environments.

By installing latch arms with different bend profiles, the latch distance A can be varied from 18 to 82 mm depending on the housing height h₁, while the extended housing is suitable for a door thickness s up to 40 mm.

Latches GN 515 are supplied with loosely enclosed latch arm.

Specification

Lock housing
Stainless steelNI

• AISI 316 (at h₁ = 30)
• AISI 303 (at h₁ = 50)
• Plain finishBL

Latch arm
Stainless steel AISI 304

Other parts
Stainless steel AISI 303

Protection class IP 65

RoHS

Accessory

Socket Keys GN 119.2
Protective Caps GN 120
Opening Handles GN 120.1
Protective Guide Plates GN 120.2
Internal Cabinet Handles GN 120.3
Sheet Metal Punches GN 123
