GN 9053 Position Indicators 6 Digits, Electronic, LCD-Display

Original design
code: DD52R-E
Color: OR - Orange, RAL 2004, shiny finish

Click on a variant image to view it in the main product display area or use tab keys to navigate through product variants

Stainless-Steel

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

  • corrosion-resistant
  • precise fit
  • environmentally friendly
Show all Stainless Steel products

Product description

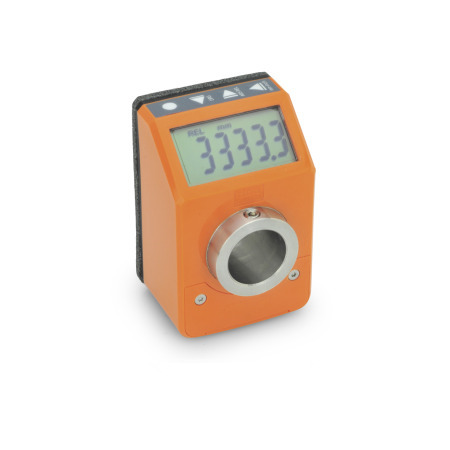

Electronic position indicators GN 9053 with LCD display are extremely versatile in use, with virtually every counting option selectable directly at the device via the operating keys. The power necessary for the display is supplied by a long-life battery.

The indicators are plugged directly onto the spindle via their hollow shaft, with the torque support defining the position for the mounting site. Mounted in this way, the indicators will detect the rotary spindle movement and show the appropriate value on the display.

Both housing sections are ultrasonically welded, making the housing highly tight, stable and compact.

The foam rubber seal prevents the transmission of vibrations and also acts as a seal.

Specification

Housing
Plastic, polyamide (PA)

  • Color
    • Orange, RAL 2004, shiny finishOROR
    • Gray, RAL 7035, shiny finishGRGR
    • Black-gray, RAL 7021, shiny finishSGSG
    • Blue, RAL 5005, shiny finishBLBL
  • Operating temperature 0 °C to +50 °C
  • Oil and solvent resistant

LCD-Display
6 digits and special characters


Hollow shaft
Stainless steel AISI 304


O-ring for identification no. 2
Acrylonitrile butadiene rubber (NBR)


RoHS

Accessory

Adapter Bushings GN 952.1
Clamping Plates GN 9053.6
Control Knobs GN 957
Control Knobs GN 957.1

Hide technical drawing
GN 9053 Position Indicators, 6 digits, Electronic, LCD-Display sketch

Article options / Table

Identification no.

1Protection class IP 65
2Protection class IP 67

Build & Price

Identification no.


Color
Blue
Gray
Orange
Black-gray
Identification no.


Color
Blue
Gray
Orange
Black-gray

Configurable Display Options

The particular advantage of electronic position indicators is their programmability. Almost any desired counting option can be set directly on the device using the function buttons.

The following settings can be configured using the 4 function buttons:

  • Selecting incremental or absolute measurement mode
  • Changing the unit of dimension (mm, inch or degree)
  • Resetting the counter or setting an offset value
  • Changing the display value after one turn
  • Changing the resolution, i.e. the number of displayed decimal places
  • Changing the direction of rotation or counting
  • Changing the display orientation (based on the installation orientation)
  • Setting the maximum speed of rotation

The lithium battery is included and has a service life of up to 5 years. Time to replace the battery is indicated by a symbol on the display. Battery replacement is easy - simply remove the front cover.
The position indicators are available with protection class IP 65 or IP 67 and are suitable for corresponding ambient conditions.

Installation Instructions and Accessory

The electronic position indicators GN 9053 with an LCD display are very similar to the mechanical position indicators GN 953 / GN 953.2 with regard to installation and external dimensions and can normally replace them. See “Further information for position indicators".

When mounting the position indicator, an appropriately situated mounting hole is required for the torque support.

If the position indicator is used with smaller shaft diameters, the hollow shaft diameter Ø 20 H7 can be reduced with adapter bushings GN 952.1.
