DIN 469 Cranked Handles Cast Iron

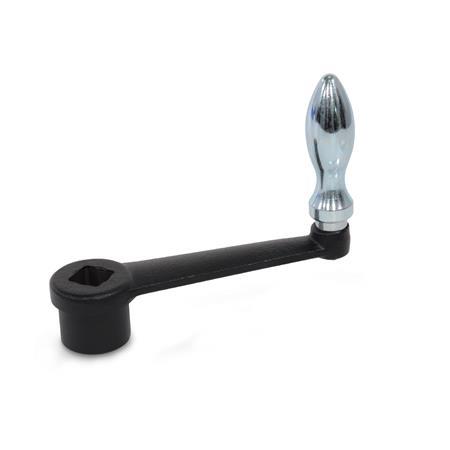

DIN 469 Cranked Handles, Cast Iron Bohrungskennzeichen: V - With square
Type: D - With revolving handle

Bohrungskennzeichen: V - With square
Type: D - With revolving handle

DIN 469 Cranked Handles, Cast Iron Bohrungskennzeichen: V - With square
Type: D - With revolving handle

DIN 469 Cranked Handles, Cast Iron Bohrungskennzeichen: B - Bore
Type: D - With revolving handle

DIN 469 Cranked Handles, Cast Iron Bohrungskennzeichen: B - Bore
Type: F - With fixed handle

DIN 469 Cranked Handles, Cast Iron Bohrungskennzeichen: V - With square
Type: F - With fixed handle

Standard sheet DIN 469 Print this page Cross holes GN 110 Squares DIN 79 ISO Fundamental Tolerances

Product description

Information

The hub bores d₁ H7 are not provided for in the official standard sheet.

Specification

Body
Cast iron (GGG)

Powder coated
Black, textured finish
Face of the hub machined

Fixed Handle DIN 39 for type F
Steel
Zinc plated, blue passivated

Revolving Handle DIN 98 for type D
Steel
Zinc plated, blue passivated

RoHS

Technical drawing

DIN 469 Cranked Handles, Cast Iron sketch

Hide technical drawing

DIN 469 Cranked Handles, Cast Iron sketch

Article options / Table

Type

F	With fixed handle
D	With revolving handle

Show / Hide columns

Length l	s H11 Square		e min. (Column 1)	(Column 2)	d₁ H7 Bore	d₂	h₁	h₂	h₃ ≈	h₄ ≈ Type D	Type F	Ø Handle

63	V 10	-	13,1	-	-	20	20	11	15	54,5	50	16
80	V 10	V 12	13,1	16,1	B 8	24	24	13	18	61	56	18
100	V 12	V 14	16,1	18,1	B 10	28	28	13	21	67	64	20
125	V 14	V 17	18,1	22,2	B 10	34	34	14	26	76	72	22
160	V 17	V 19	22,2	25,2	B 14	38	38	14	29	83	80	25
200	V 19	V 22	25,2	28,2	B 17	44	44	21	34	96,5	90	28
250	V 22	V 24	28,2	32,2	B 17	48	48	21	36	105,5	100	32

Build & Price

Open 3D configurator

GN 110 Cross holes (special order)

f8ca6d28-dd73-48fa-98c4-bb48305c7686

Show / Hide columns

d₁ H7 s H11	d₁ H7 s H11	d₂ H11	d₃	Length l Standard version	Length l Handwheels DIN 950 / GN 949 to Ø 250

6	7	2,5	M 3	4,5	-
8	9	3	M 5	5,5	4,5
10	11	3	M 5	5,5	4,5
12	13	4	M 6	6,5	5,5
14	15	4	M 6	6,5	5,5
16	17	5	M 6	8	7
18	19	5	M 6	8	7
20	21	5	M 6	8	7
22	23	6	M 6	10	9
24	25	6	M 6	10	9
26	27	6	M 6	10	9

The connection between the operating element and the shaft consists very often of a cross pin or a grub screw.
As a result the user is faced with relatively high costs since cross holes on operating elements are in general not readily available.
Components with cross holes to GN 110 are not only offered at very competitive prices but they also save the manufacturer unnecessary drawing work. The geometrical form of some of the operating elements, however, does not lend itself to modification to this particular standard.
The pin hole d₂ H11 is drilled to suit drive spring pins.

The cross hole GN 110 is to be ordered as a separate item in shopping cart step 1 under note.
How to order: Handwheel DIN 950-GG-160-B14-A with cross hole GN 110-QE

6df6d732-25ae-4db8-8ad2-f11ca730e67b

Selected Part (How to order)

Part number

Total (net)

18,87 €

plus VAT 3,59 €
gross 22,46 €

In stock

Weight: 0,120 kg

If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0

RoHS: Yes

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).

Customs tariff number

84879059

Please note our order discounts.

With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €

Quantity

All prices in accordance with our price list No. 56, valid from 1 September 2024, plus VAT only valid for Germany.
