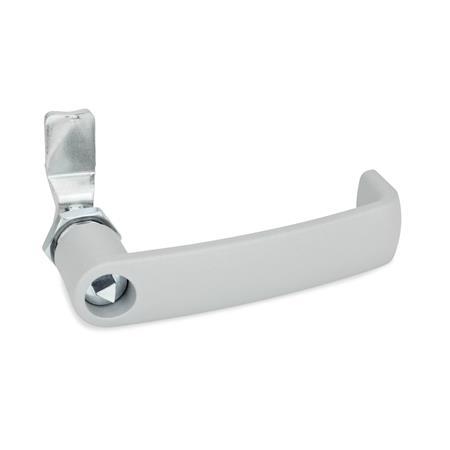

Latches with Cabinet U-Handle GN 115.7

Type: DK - With triangular spindle
Finish: SR - Silver, RAL 9006, textured finish

Standard sheet GN 115.7 Print this page List of latch types Technical and assembly instructions Operating instruction GN 115.7

Product description

Latches with cabinet U-handle GN 115.7 are used when the application requires both a locking mechanism and a handle. They lock by a turning operation limited to 90° which moves the latch arm in the locked position behind the door frame. The bevels of the latch arm ease the closing of the door.

Latch arms are available with different bend angles to cover a latch arm distance A from 4 to 50 mm. The latches with cabinet U-handle GN 115.7 are supplied with loosely enclosed latch arm.

The cabinet U-handle with integrated latch arm is an attractively designed and cost-effective solution.

Specification

Cabinet U-handle
Zinc die casting
Powder coated
Black, RAL 9005, textured finishSW
Silver, RAL 9006, textured finishSR

Other parts
Steel
Zinc plated, blue passivated

RoHS

Latch distance A

4	6	8	10	13	14	16	18	20	22	24	26	28	30	32	34	36	38	40	42	45	50

Latch distance A

DK	With triangular spindle
VK7	With square spindle
VK8	With square spindle
SCH	With slot
VDE	With double bit

GN 115.7 Latches with Cabinet U-Handle Operation with Socket Key

Product description

Specification

Article options / Table

Type

Build & Price

Technical and assembly instructions

Selected Part (How to order)

CAD data

CAD data

Login

Quick-Login

Do you find your product ?

This could also be interesting...


Depending on the installation situation, the 90° turning range of the latch arm can be defined by means of a plug-type element, which can be mounted in 4 different positions. This allows the latch with U-handle to be used in any attachment position and regardless of the turning and locking direction or of the narrow side of the door. Subsequent repositioning of the 90° rotary range is possible, if necessary. The possible plugging options and the resulting 90° rotary ranges are shown in the outline drawing.

							For installation, the door, cover or hatch is fitted with two holes according to one of the two outline drawings. If preassembled (cabinet U-handle including latch arm), the latch can be inserted through the hole from the front. The mounting nut can then be pushed over the latch from the back and bolted in place. The second end of the cabinet U-handle is secured with an M6 mounting screw (not included). Finally, both elements are tightened. The required installation holes in the door leaf, is usually generated by punching or laser machining in series production.
