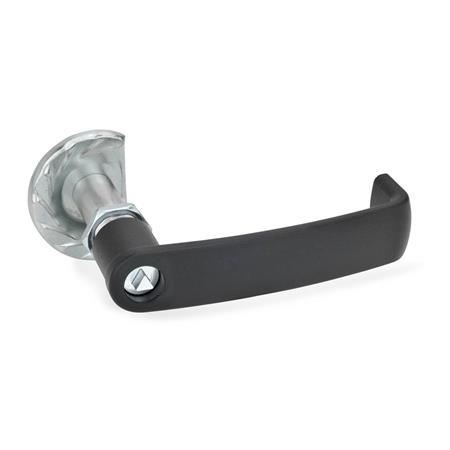

GN 119.3 Latches with Cabinet U-Handle Zinc Die Casting, Operation with Socket Key

Type: DK - With triangle
Finish: SW - Black, RAL 9005, textured finish

Click on a variant image to view it in the main product display area or use tab keys to navigate through product variants

Standard sheet GN 119.3 Print this page List of latch types Technical and assembly instructions

Product description

Latches with cabinet U-handle GN 119.3 are used when the application requires both a locking mechanism and a handle. They lock by a turning operation clockwise (right), which moves the cam latch into the locked position behind the door frame. The latches have a pulling-in range of 10 mm so that they can also be used together with seals, for example.

The various operating bolts and distance pieces allow for a clamping range A1...A9 from 17 to 65 mm.

The cabinet U-handle with integrated cam latch is a very attractively designed and cost-effective solution.

Specification

Cabinet U-handle
Zinc die casting
Powder coated

  • Black, RAL 9005, textured finishSWSW
  • Silver, RAL 9006, textured finishSRSR

Cam latch
Sheet steel zinc plated, blue passivated

Operating bolt
Steel zinc plated, blue passivated

Distance piece
Aluminum

Other parts
Steel zinc plated, blue passivated

RoHS

Accessory

Socket Keys GN 119.2

GN 119.3 Latches with Cabinet U-Handle sketch
Hide technical drawing
GN 119.3 Latches with Cabinet U-Handle sketch

Article options / Table

Type

DKWith triangle
VK7With square
VK8With square
VDEWith double bit
Show / Hide columns
Clamping range A1 ... A9
(Door thickness + frame thickness)
A 1 (l=35)A 2 (l=40)A 3 (l=45)A 4 (l=50)A 5 (l=55)A 6 (l=60)A 7 (l=65)A 8 (l=70)A 9 (l=75)
17 ... 2522 ... 3027 ... 3532 ... 4037 ... 4542 ... 5047 ... 5552 ... 6057 ... 65

Build & Price
Type




Clamping point A KB
Finish
Silver
Black
Type




Clamping point A KB
Finish
Silver
Black

Technical and assembly instructions
Sketch Mounting Holes GN 119.3

By turning the latch clockwise (right) the stepped cam latch moves up behind the door frame and pulls the door in.

The large pulling-in range of the cam (10 mm) allows these locks to be used successfully on doors with sealing strips. When selecting clamping range A the thickness of the seal might have to be taken into consideration.

For installation, two holes must be made in the door according to one of the two outline drawings.

The lock housing with the preassembled operating bolt is fitted into the hole from the front and held in position with the mounting nut on the back side. The distance piece and cam latch are then pushed one after the other onto the operating bolt from the back side and fastened with the hex head screw.

The required installation holes in the door leaf, are usually generated by drilling, punching or laser machining in series production. latch.

Selected Part (How to order)

Total (net)
20,78 €
plus VAT 3,95 €
gross 24,73 €
In stock
incl. material surcharge: 0,67 €
The material surcharge is already included in the price.
Weight: 0,407 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
83089000
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
Create project list
Save as favourite
Recommend a product

Please enter the code you can find in the picture.

CAD data

Other data formats

Quick-Login

For getting CAD data please enter you Email address. But we would be pleased, if you are fully registered.

Please enter the code you can find in the picture.

CAD Download Tutorial About CAD-Downloads

Do you find your product ?

Our service team is available from Monday to Friday between 7:30 AM and 5:00 PM: +49 7723 6507 - 0

To the customised elements | To the contact persons

GN 119.3-DK-A1-SWGN 119.3-DK-A1-SRGN 119.3-VK7-A1-SWGN 119.3-VK7-A1-SRGN 119.3-VK8-A1-SWGN 119.3-VK8-A1-SRGN 119.3-VDE-A1-SWGN 119.3-VDE-A1-SRGN 119.3-DK-A2-SWGN 119.3-DK-A2-SRGN 119.3-VK7-A2-SWGN 119.3-VK7-A2-SRGN 119.3-VK8-A2-SWGN 119.3-VK8-A2-SRGN 119.3-VDE-A2-SWGN 119.3-VDE-A2-SRGN 119.3-DK-A3-SWGN 119.3-DK-A3-SRGN 119.3-VK7-A3-SWGN 119.3-VK7-A3-SRGN 119.3-VK8-A3-SWGN 119.3-VK8-A3-SRGN 119.3-VDE-A3-SWGN 119.3-VDE-A3-SRGN 119.3-DK-A4-SWGN 119.3-DK-A4-SRGN 119.3-VK7-A4-SWGN 119.3-VK7-A4-SRGN 119.3-VK8-A4-SWGN 119.3-VK8-A4-SRGN 119.3-VDE-A4-SWGN 119.3-VDE-A4-SRGN 119.3-DK-A5-SWGN 119.3-DK-A5-SRGN 119.3-VK7-A5-SWGN 119.3-VK7-A5-SRGN 119.3-VK8-A5-SWGN 119.3-VK8-A5-SRGN 119.3-VDE-A5-SWGN 119.3-VDE-A5-SRGN 119.3-DK-A6-SWGN 119.3-DK-A6-SRGN 119.3-VK7-A6-SWGN 119.3-VK7-A6-SRGN 119.3-VK8-A6-SWGN 119.3-VK8-A6-SRGN 119.3-VDE-A6-SWGN 119.3-VDE-A6-SRGN 119.3-DK-A7-SWGN 119.3-DK-A7-SRGN 119.3-VK7-A7-SWGN 119.3-VK7-A7-SRGN 119.3-VK8-A7-SWGN 119.3-VK8-A7-SRGN 119.3-VDE-A7-SWGN 119.3-VDE-A7-SRGN 119.3-DK-A8-SWGN 119.3-DK-A8-SRGN 119.3-VK7-A8-SWGN 119.3-VK7-A8-SRGN 119.3-VK8-A8-SWGN 119.3-VK8-A8-SRGN 119.3-VDE-A8-SWGN 119.3-VDE-A8-SRGN 119.3-DK-A9-SWGN 119.3-DK-A9-SRGN 119.3-VK7-A9-SWGN 119.3-VK7-A9-SRGN 119.3-VK8-A9-SWGN 119.3-VK8-A9-SRGN 119.3-VDE-A9-SWGN 119.3-VDE-A9-SR
