GN 822.9 Stainless Steel Mini Indexing Plungers with and without Rest Position

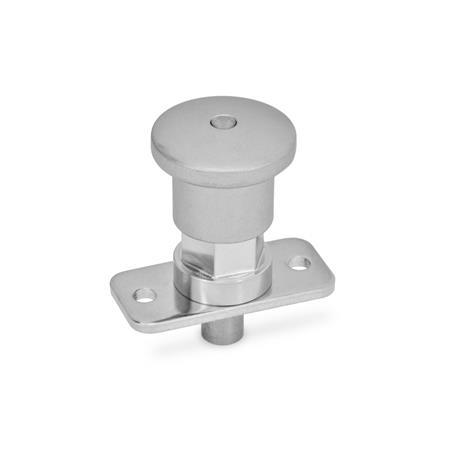

GN 822.9 Stainless Steel Mini Indexing Plungers, with and without Rest Position Type: BN - without rest position, with Stainless Steel knob
Type: BN - without rest position, with Stainless Steel knob
GN 822.9 Stainless Steel Mini Indexing Plungers, with and without Rest Position Type: BN - without rest position, with Stainless Steel knob GN 822.9 Stainless Steel Mini Indexing Plungers, with and without Rest Position Type: B - without rest position, with plastic knob GN 822.9 Stainless Steel Mini Indexing Plungers, with and without Rest Position Type: C - with rest position, with plastic knob GN 822.9 Stainless Steel Mini Indexing Plungers, with and without Rest Position Type: CN - with rest position, with Stainless Steel knob
Stainless-Steel

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

  • corrosion-resistant
  • precise fit
  • environmentally friendly
Show all Stainless Steel products
Standard sheet GN 822.9 Print this page List of Indexing Plunger Types Load Rating Information ISO Fundamental Tolerances Stainless Steel Characteristics Plastic Characteristics

Product description

Information

Stainless steel mini indexing plungers GN 822.9 are distinguished for their small dimensions.

The stainless steel mini indexing plungers present an affordable alternative to the GN 608.5 and GN 608.6 stainless steel indexing plungers.

In types C and CN, the button can be turned by 30° after retracting the indexing pin, holding it in the "retraced" position using the indexing lock.

Specification

Socket
Stainless steel AISI 304

Plunger pin
Stainless steel AISI 303

Pressure spring
Stainless steel AISI 301

Knob type B and C
Plastic (Polyamide PA)

  • Black, matte
  • Not removable

Knob type BN and CN

  • AISI CF-8
  • Matte, blasted
  • Not removable

RoHS

On request

With red knob

Technical drawing

3D
GN 822.9 Stainless Steel Mini Indexing Plungers, with and without Rest Position sketch
Hide technical drawing
GN 822.9 Stainless Steel Mini Indexing Plungers, with and without Rest Position sketch

Article options / Table

Type

Bwithout rest position, with plastic knob
BNwithout rest position, with Stainless Steel knob
Cwith rest position, with plastic knob
CNwith rest position, with Stainless Steel knob
Show / Hide columns
d1
Pin h9
Bore +0,03/+0,08		l1b1b2d2 -0,05 / -0,1d3d4kl2l3l4l5
Stroke		Spring load in N ≈
initial
end
451035158214,32520,5225412
5612401810254,33025,52,526616
6612401810254,33025,52,526616
81020502314335,338352,53101135
101020502314335,338352,53101135
