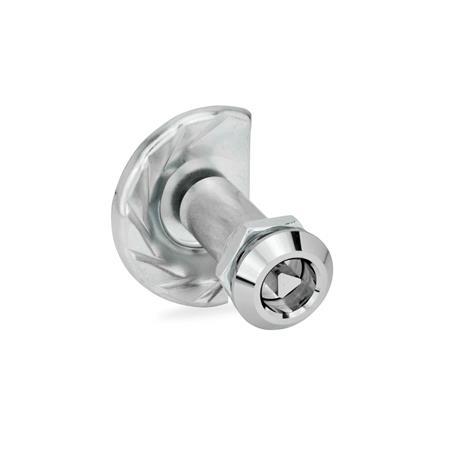

GN 119 Latches Housing Zinc Die Casting, with Operating Element or Operation with Socket Key


GN 119 Latches, with Operating Elements or Operation with Socket Key Material: ZD - Zinc die casting Type: DK - With triangular spindle
Material: ZD - Zinc die casting
Type: DK - With triangular spindle
GN 119 Latches, with Operating Elements or Operation with Socket Key Material: ZD - Zinc die casting Type: DK - With triangular spindle GN 119 Latches, with Operating Elements or Operation with Socket Key Material: ZD - Zinc die casting Type: SG - With star knob GN 119 Latches, with Operating Elements or Operation with Socket Key Material: ZD - Zinc die casting Type: VDE - With double bit GN 119 Latches, with Operating Elements or Operation with Socket Key Material: ZD - Zinc die casting Type: VK7 - With square spindle
Standard sheet GN 119 Print this page List of latch types Operating instruction GN 119 Construction and assembly instructions for GN 119 Plastic Characteristics

Product description

Information

Latches GN 119 lock by a turning operation clockwise (right), which moves the cam latch into the locked position behind the door frame.

The latches have a pulling-in range of 10 mm so that they can also be used together with seals, for example.

The various operating bolts and distance pieces allow for a clamping range A1...A9 from 17 to 65 mm.

Specification

Lock housing / Operating bolt
Zinc die casting, chrome plated

Cam latch
Sheet steel
Zinc plated, blue passivated

Distance piece
Aluminum

Star knobs GN 5337.2
Plastic (Polypropylene PP)
Black, matte finish

RoHS

Accessory

Socket Keys GN 119.2
Protective Caps GN 120
Opening Handles GN 120.1
Sheet Metal Punches GN 123

Technical drawing

3D
GN 119 Latches, with Operating Elements or Operation with Socket Key sketch
Hide technical drawing
GN 119 Latches, with Operating Elements or Operation with Socket Key sketch

Article options / Table

Type

SGWith star knob
DKWith triangular spindle
VK7With square spindle
VK8With square spindle
VDEWith double bit
Show / Hide columns
Clamping range A1 ... A9
(Door thickness + frame thickness)		A1
A1 (l=35)A2 (l=40)A3 (l=45)A4 (l=50)A5 (l=55)A6 (l=60)A7 (l=65)A8 (l=70)A9 (l=75)
17 - 2522 - 3027 - 3532 - 4037 - 4542 - 5047 - 5552 - 6057 - 65

Build & Price

Open 3D configurator
Specifications

Type





Clamping range A

Construction and assembly instructions

c8636fcf-68b4-4d46-b1bc-1cd6dfece88b

By turning the latch clockwise (right) the stepped cam latch moves up behind the door frame and pulls the door in.

The large pulling-in range of the cam (10 mm) allows these locks to be used successfully on doors with sealing strips. When selecting clamping range A, any seal present must be taken into consideration.

For installation, make a hole in the door as shown in the outline drawing.
The lock housing with the preassembled operating bolt is fitted into the hole from the front and held in position with the mounting nut on the back side. The distance piece and cam latch are then pushed one after the other onto the operating bolt from the back side and fastened with the hex head screw.

The required installation hole in the door leaf, is usually generated by punching or laser machining in series production.

The installation hole diameter can also be created by drilling or milling as shown in the outline drawings.

For small series and steel sheets below 2 mm thickness, the Sheet Metal Punches GN 123 is alternatively the tool of choice.

Selected Part (How to order)

Total (net)
9,10 €
plus VAT 1,73 €
gross 10,83 €
In stock
Weight: 0,118 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
83089000
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
All prices in accordance with our price list No. 56, valid from 1 September 2024, plus VAT only valid for Germany.
